Technical data

Ecofur^® is installed according with the orientation of the “arrow” graved in the superior part of Ecofur^®, corresponding to the fluid circulation (water, air, efluent, etc).

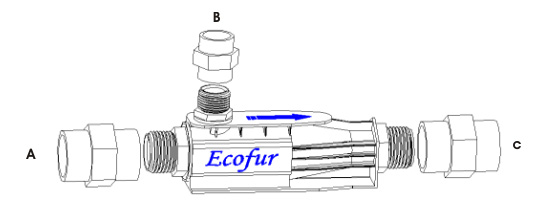

Ecofur^® is constituted by two entrances (A e B): one to the injection fluid (ex: water) and other to the suction fluid (ex: air), which also can be injected under pressure. The exit (C) is common to the two entrances.

Ecofur^® creates vacuum or suction caudal when there is a resistance to the exit of Ecofur^® higher than 0,02 bar and a differential between the injection pressure (entrance) and the exit pressure, higher than 0,2 bar. If this differential is higher than 1 bar, the suction caudal (ex: air) is higher than the liquid caudal (ex: water) corresponding to the pressure differential entrance/exit.

To a good functioning of Ecofur^®, with the maximum efficiency, is necessary that:

• The model of Ecofur^® is the adequate;

• Ecofur^® is correctly installed;

• The caudals and pressures are correct to the needs of Ecofur^® and the efficiency wanted;

• All the accessory installation, including equipments, is compatible to the utilization of Ecofur^®;

• Check the tables and graphics of efficiency;

• Ask for our technical support.

• ECOFUR^® IF-H11:

“Ecofur^®” is the brand of a “fluids extractor and mixer”.

 “IF-H11” is a model of Ecofur^®: It means that injection “I” of liquid is frontal “F” and that the inside diameter of the pressure beak is of “11” mm. The letter “H” (hydraulic) represents the model series, which is meant to water and effluents.

This model is fabricated in polyamide “PA6”; it’s a plastic, like nylon, very resistant to the temperature differences (maximum 120ºC), to the mechanic abrasion in the circulation of fluids and is neutral to most of chemical products.

The raw materials used in the fabrication of Ecofur^® IF-H11 are certificated and have chemical characteristics to use in potable water.

Ecofur^® IF-H11 admits pressures until 5 bar and solid particles in suspension until 11mm.

To obtain a pressure of 1 bar in the injection of the liquid to the Ecofur^®, is necessary a energy of, approximately, 0,55kW/h, to most of electro bombs.

Ecofur^® IF-H11 is suitable:

In the airing/oxygenation, biologic treatment, oxidation, ozone diffusion, flotation, vacuum and fluid mixture;

• In potable water;

Oxygenation/airing in treatment and/or water conservation stations, diffusion of ozone to the desinfection of water, precipitation of iron (F3) and manganese by oxidation…(lakes/lagoons, tanks/deposits, etc.)

• In urban/industrial residual waters;

Airing in ETAR’s of activated muds, percolation, mobile bed, SBR (Sequential Biologic Reactor), oxidation, flotation… (Lagoons, tanks, deposits, “compacts”, etc.)

• In pisciculture;

Oxygenation/airing of water, flotation… (lagoon, tank, deposit, etc.)

• In pools and allikes;

Conservation of the water by oxygenation/airing, hydro massage effect, ludic endings… (pools, jacuzzis, against the corrent, fountains/lakes, etc).

• ECOFUR^® IF-H18:

 Alternative version to Ecofur^® IF-H11. It’s in project phase.

• ECOFUR^® IL-G40:

Used in the treatment of gases and cooling. It’s in research phase.

back to top ▲

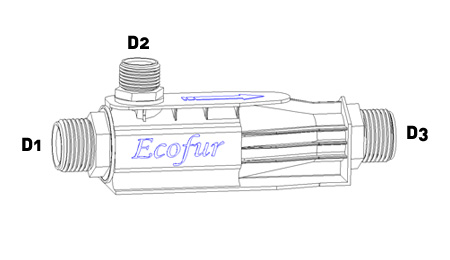

General characteristics

* The value of the power is medium because it depends of the characteristics and the type of the electric bomb.

back to top ▲

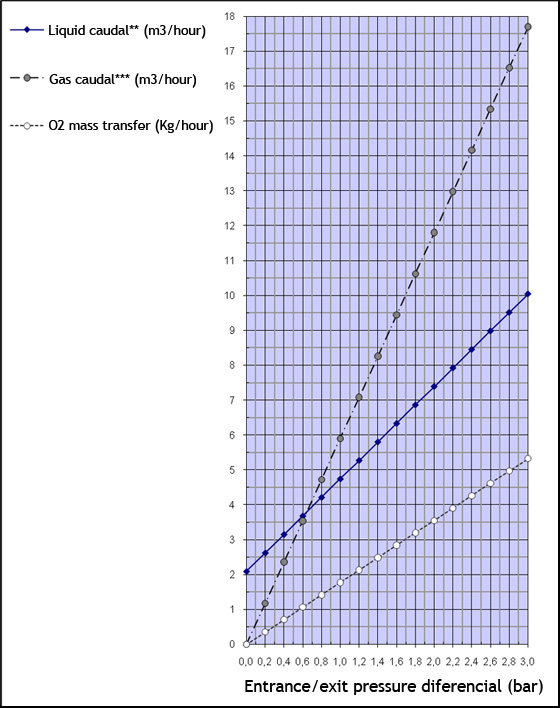

Ecofur^® IF-H11 Efficiency

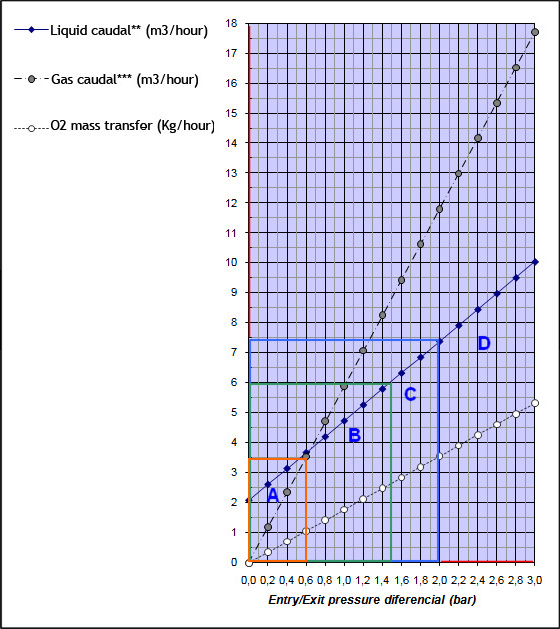

Applications in function of the pressure Ecofur^® IF-H11
