Applications in new or
reconstructed facilities
ECOFUR®
Function applied in the treatment or pretreatment of
water

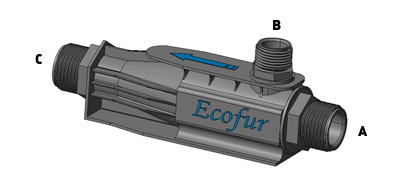

The water is injected under pressure trough the frontal
entrance (A). The air is captured by suction trough the
lateral entrance (B), due to the water circulation. The
air with the water leaves mixed by centrifugation,
trough the exit (C), with transference of the oxygen
from the air to the water.
•
Potable water, oxygenation and conservation of the
water;
In lakes, pisciculture, pools and alikes with hydro
massage effect……….

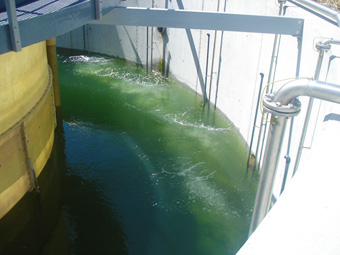

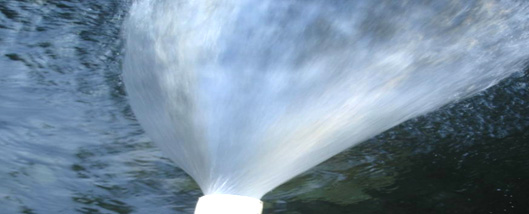

Above, Ecofur®’s submersed to the oxygenation of water
(airing) and below to the liberation of toxic gases.
•

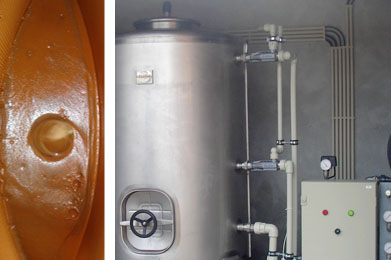

Oxidation e precipitation of iron (F3),
manganese…
Decantation of iron and manganese oxidized and
precipitated by the Ecofur®
using the surrounding air, in
the deposit of oxidation.
•
Urban residual water, water from farming and cattle
raising, industrials waters…
Ecofur®
has great efficiency in the oxidation, flotation
and activated muds, in compact ETAR, tank or lagoon.
Pretreatment
in residual waters:
Wine-growing cellars, dairy products, olive-oil presses,
lixiviates from sanitary embankments...

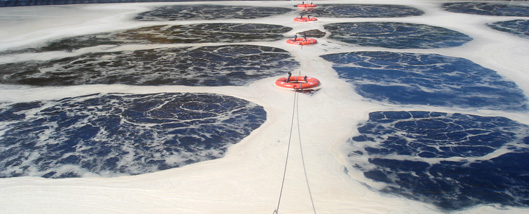

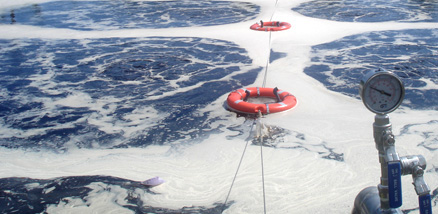

Example of an airing line construction and application
in oxidation lagoons and activated muds.
•
Airing of urban residual waters or equivalents:
Compact ETAR, tank or lagoon; by activated muds,
percolation, mobile bed…

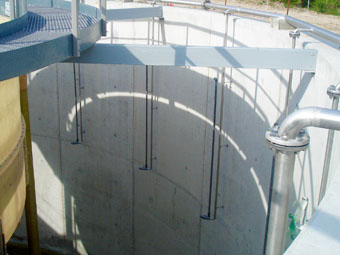

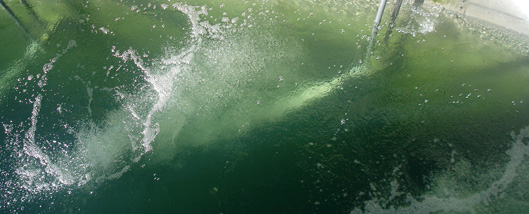

Ecofur®
used in ETAR’s and effect of the air mixed in the
water “micro bubble diluted”
•
Flotation of oils, fats or residuals:
Industrial residual waters:
Slaughterhouses, olive-oil presses, wine-growing
cellars, dairy products, refineries, sanitary
embankments (lixiviates)…
Compact and conventional floters. Flotation trough
Ecofur®.
•
Function applied in the production of vacuum:
The water is injected under pressure trough the frontal
entrance (A). The fluid from the vacuum unity(air or
vapor) is captured by suction trough the lateral
entrance (B), with the vapor condensation and the
transference of polluters to the water. The air or
“condensed vapor” with the water are liberated, by the
exit (C).
•
Function applied in the fluid mixing:
In the process of mixing two fluids, Ecofur®
is installed
in an open or closed circuit, so one of the fluids is
injected under pressure trough one of the entrances (A
or B) and the other fluid is captured by suction trough
the other entrance (B or A). Both of the fluids can also
be injected under the pressure, each one trough one of
the entrances (A and B). The two fluids are liberated by
the exit (C) properly mixed by centrifugation.
•
Function suitable in water cooling, in research:
The “hot” water is injected under pressure trough the
lateral entrance (B). The air is injected trough the
frontal entrance (A). The water with the air is
liberated trough the exit (C), with transference of heat
from the water to the air.
•
Function suitable in direct condensation, in research:
The water is injected trough the lateral entrance (B).
The vapor is captured by suction or injected trough the
frontal entrance (A). The water with the “condensed
vapor” is liberated trough the exit (C).
•
Function suitable in the washing and neutralization of
polluted air, in research:
The aqueous solution to washing and neutralization of
the gases is injected under pressure trough the lateral
entrance (B). The gases are captured by suction or
injected under pressure trough the frontal entrance (A).
The aqueous solution mixed with the air is liberated by
the exit (C).
|
